ENV-TEMPTemperature Monitoring Sensor
for server rooms, IDF & MDF closets
ISO 17025 calibrated
±0.5°C / ±0.9°F accuracy with ±0.1°C / 0.18°F precision.
ISO 17025 calibrated — optional calibration certificate.
UL 61010 Recognized.
Wide -55°C to +125°C / -67°F to +257°F measurement range.
Designed for racks, server rooms & IDF/MDF closets.
Daisy chain version for up to 20 sensors on one base unit.
BMS ready via Modbus TCP, BACnet IP & Modbus RTU.
SNMP for NMS/DCIM & MQTT for IIoT.
ISO 17025 calibrated — optional calibration certificate.
UL 61010 Recognized.
Wide -55°C to +125°C / -67°F to +257°F measurement range.
Designed for racks, server rooms & IDF/MDF closets.
Daisy chain version for up to 20 sensors on one base unit.
BMS ready via Modbus TCP, BACnet IP & Modbus RTU.
SNMP for NMS/DCIM & MQTT for IIoT.
Placement quick reference — one base unit, three measurement points per rack:
Front bottom: air reaching the rack
Front top: cool air reaching the top
Rear top: the hottest point
Rack & Closet Placement
Where to monitor: front top & bottom of the rack, the hot top rear, and the right spot in an IDF/MDF closet that nobody walks past.
Accuracy & Range
±0.5°C / ±0.9°F accuracy and ±0.1°C / 0.18°F precision across a -55°C to +125°C measurement range, in Celsius or Fahrenheit.
Calibration & Certification
ISO 17025 calibrated and UL 61010 Recognized, with optional calibration certificates from our in-house lab for compliance trails.
From 1 to 20 Sensors
Start with one probe, grow to 8 with the Sensor Hub, or run up to 20 temperature sensors on one base unit with the daisy chain version.
RS-485 Model
Integrating with your own gateway or control system? A special version of the sensor is available with an RS-485 digital output.
How-To Video
A 90 second guided tour of the temperature sensor: what it looks like, how it connects and what you see once it is live.
Technical Specifications
Full measurement, calibration, certification and connectivity specifications for the ENV-TEMP.
Accuracy & Range
- Measures from -55°C to +125°C (-67°F to +257°F), reading in Celsius or Fahrenheit.
- Precision of ±0.1°C (0.18°F).
- Accuracy of ±0.5°C (0.9°F) from -10°C to +85°C (14°F to 185°F).
- The 0.1°C steps resolve the slow creep of a failing CRAC or a blocked filter long before a threshold trips.
Note: the probe's measurement range is wider than the operating range of the base unit itself — in extreme environments, place the base unit within its own environmental limits and run the probe's cable to the hot or cold spot.
Calibration & Certification
All sensors drift over time, mainly due to physical factors. That is a property of sensing elements, not of any particular brand — what matters is whether the drift is measured and corrected.
- ISO 17025 calibrated temperature measurement.
- Factory tested for tolerance prior to shipping.
- Optional calibration certificate from our in-house lab with your purchase, for compliance or assurance trails.
- Yearly recalibration recommended for sensors used in compliance applications.
- UL 61010 Recognized component.
Calibration Services About Sensor Drifting
From 1 to 20 Sensors on One Base Unit
One base unit grows with the room:

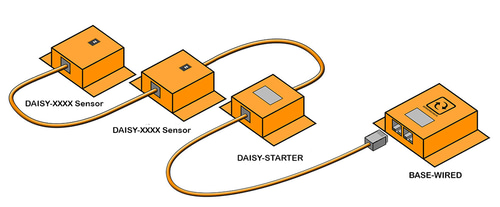

Daisy Chained Sensors
- Start: the base unit's built-in sensor plus external ENV-TEMP probes.
- Up to 8 sensors per base unit with the optional Sensor Hub.
- Up to 20 temperature sensors on a single base unit with the daisy chain version — one IP address for the whole room.
Daisy Chained Sensors
